N9010B EXA 信号分析仪，多点触控，10 Hz 至 44 GHz

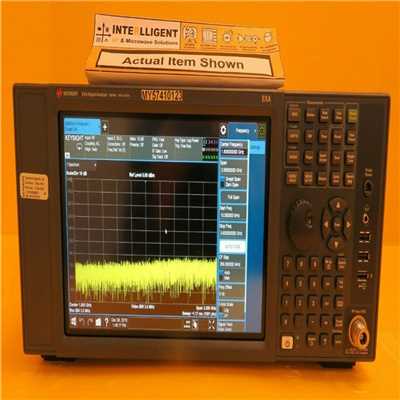

EXA X-Series Signal Analyzer, Multi-touch N9010B
This configuration guide will help you determine which performance options, measurement applications,
accessories, and services to include with your new multi-touch EXA or to add as upgrades to an existing
EXA.
主要特性和功能
使用快速、灵活的 EXA 应对各种需求
获得对毫米波测量结果最经济高效的分析
利用优异的电平精度、DANL 和 TOI，探测大信号遮蔽下的最小信号
使用列表扫描模式，在不连续的频率点上快速执行功率测量
X 系列测量应用软件可以简化测试
选件
Frequency Range
N9010B-503 Frequency Range, 10 Hz to 3.6 GHz
N9010B-507 Frequency Range, 10 Hz to 7 GHz
N9010B-513 Frequency Range, 10 Hz to 13.6 GHz
N9010B-526 Frequency Range, 10 Hz to 26.5 GHz
N9010B-532 Frequency Range, 10 Hz to 32 GHz
N9010B-544 Frequency Range, 10 Hz to 44 GHz
Preamplifier
N9010B-P03 Preamplifier, 3.6 GHz
N9010B-P07 Preamplifier, 7 GHz
N9010B-P13 Preamplifier, 13.6 GHz
N9010B-P26 Preamplifier, 26.5 GHz
N9010B-P32 Preamplifier, 100 kHz - 32 GHz
N9010B-P44 Preamplifier, 100 kHz - 44 GHz
Bandwidth
N9010B-B40 Analysis Bandwidth, 40 MHz
Performance Options
N9010B-DP2 Digital Processor, 2 GB Capture Memory
N9010B-EA3 Electronic Attenuator, 3.6 GHz
N9010B-EDP Enhanced Display Package License
N9010B-EMC Basic EMC Functionality
N9010B-FP2 Fast Power, up to 40 MHz Bandwidth
N9010B-FSA Fine Resolution Step Attenuator
N9010B-MPB Microwave Preor Bypass
N9010B-PFR Precision Frequency Reference
N9010B-TDS Time Domain Scan
N9010B-NF2 Noise Floor Extension
